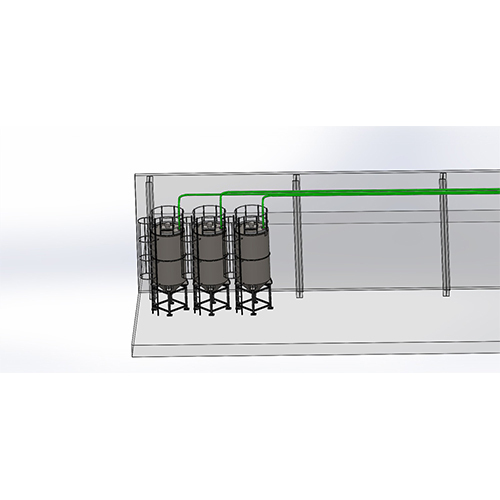

Pneumatic Conveyor with Roots Blower

Name: Pneumatic Conveyor with Roots Blower
Brand: INVOIT PLAST MACHINERY PRIVATE LIMITED
Price: 278000 INR
Availability: InStock

Price 278000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pneumatic Conveyor with Roots Blower Specification

Features
Dust-free operation, continuous conveying, high efficiency, easy installation & maintenance

Thickness
3 mm to 10 mm (according to requirement)

Surface Finish
Powder coated / Mat finish (stainless steel)

Power Source
Electric Motor coupled to Roots Blower

Material
Mild Steel / Stainless Steel (SS304/SS316 as per application)

Type
Pneumatic Conveyor System with Roots Blower

Structure
Modular, skid-mounted design

Belt Conveyor
Not Applicable for pneumatic model

Roller Conveyor
Not Applicable for pneumatic model

Vertical Conveyor
Optional attachment for lifting materials vertically

Pneumatic Conveyor
Available as per design

Resistant Feature
Corrosion and abrasion resistant construction

Load Capacity
Up to 5000 kg/h (customizable as per requirement)

Voltage
380V / 415V / 220V (3-phase, customizable)

Power
5 HP to 100 HP depending on capacity and application

Speed
Variable (as per process requirement)

Usage & Applications
Bulk solid handling, chemical, food, pharmaceutical, cement, plastic granules, ash handling

Safety Features
Pressure relief valve, filter clog indicator, and emergency stop

Control Panel
Fully automatic with PLC & interlocks

Feeding System
Rotary/Double Flap Valve, Screw Feeder, or Suction Nozzle

Roots Blower Capacity
250 m3/h to 3000 m3/h

Noise Level
Less than 85 dB(A)

After Sales Service
Available with technical support

Conveying Distance
Up to 100 m horizontal, 30 m vertical (depends on material and design)

Transfer Rate
Adjustable, application-specific

Ambient Temperature Range
-10C to 55C

Air Pressure Range
0.1 bar to 1 bar (g)

Output Discharge
Cyclone Separator or Receiving Hopper with Dust Collector

Inlet Particle Size
Up to 25 mm (varies by model)

Installation
Skid-mounted, quick installation possible

Pneumatic Conveyor with Roots Blower Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Pneumatic Conveyor with Roots Blower

Experience dazzling performance and instant savings with our venerable Pneumatic Conveyor System featuring Roots Blower technology. Designed for spectacular efficiency, this system delivers fresh solutions for bulk solid handling across industries. Enjoy customizable transfer rates, corrosion-resistant construction, and superior dust-free operation. Whether you require a modest 250 m3/h flow or a powerful 3000 m3/h, the adjustable pneumatic settings cater to your specific needs. Quick order fulfillment and rapid installation ensure minimal downtime. Ensure seamless operation with its fully automatic PLC panel, safety interlocks, and expert after-sales support. Order now for fresh, spectacular results!

Application Surface, Features & Suitable Usage

The Pneumatic Conveyor with Roots Blower is ideal for transferring bulk solids in sectors such as food, chemical, cement, pharmaceutical, and plastics. Its durable, corrosion and abrasion-resistant construction, modular skid-mounted structure, and customizable load capacity make it suitable for versatile indoor or outdoor surface installations. A fresh, dust-free operation minimizes product loss, while a fully automated control panel ensures safe, efficient use. This system is especially suited for continuous, high-efficiency conveying over varying distances and heights.

Payment Terms, Export Market & Packaging Details

Asking price depends on system specifications and application requirements. Our company works with flexible payment terms to suit client needs. We export to a dazzling range of main international markets and supply goods transport and freight services for secure delivery. Each pneumatic conveyor is carefully packaged for transit, ensuring the system reaches you in pristine condition. Comprehensive documentation and labeling assist with seamless customs clearance. Contact us for precise freight quotes and payment options tailored to your location.

FAQ's of Pneumatic Conveyor with Roots Blower:

Q: How does the pneumatic conveyor with Roots Blower operate and what materials can it handle?

A: The system uses compressed air generated by the Roots Blower to convey bulk solid materials such as powders, granules, cement, food, or chemicals. It handles a wide range of particle sizes up to 25 mm, depending on model and design.

Q: What are the benefits of a fully automatic PLC control panel?

A: A PLC-based control panel offers precise process control, real-time interlocks for safety, and ease of operation. This automation minimizes human error, ensures safety, and optimizes conveying efficiency.

Q: Where can I install the Pneumatic Conveyor System?

A: Thanks to its modular, skid-mounted design, installation is possible both indoors and outdoors on various surfaces. Its corrosion-resistant finish is suitable for factories, warehouses, or production lines involving dust or moisture.

Q: What payment and delivery options are available to customers?

A: We offer flexible payment terms and facilitate goods transport and freight services for both domestic and international deliveries. Systems are professionally packaged and accompanied by detailed documentation for smooth transit and customs processes.

Q: How is after-sales service and technical support provided?

A: Our experienced support team in India offers prompt after-sales service, including installation guidance, maintenance, and troubleshooting, to ensure uninterrupted system performance.

Q: What makes this pneumatic conveyor system a cost-effective option?

A: With its energy-efficient Roots Blower, instant savings in operational costs, low maintenance, and dust-free high-volume transfer, the system provides a long-lasting and cost-effective solution for bulk solids handling.
